Description
Specifications
- Application: Transfer of chemicals, urban and industrial wastewater discharge of mixed content. For suitable fluids please check chemical resistance chart at the end of the catalog.

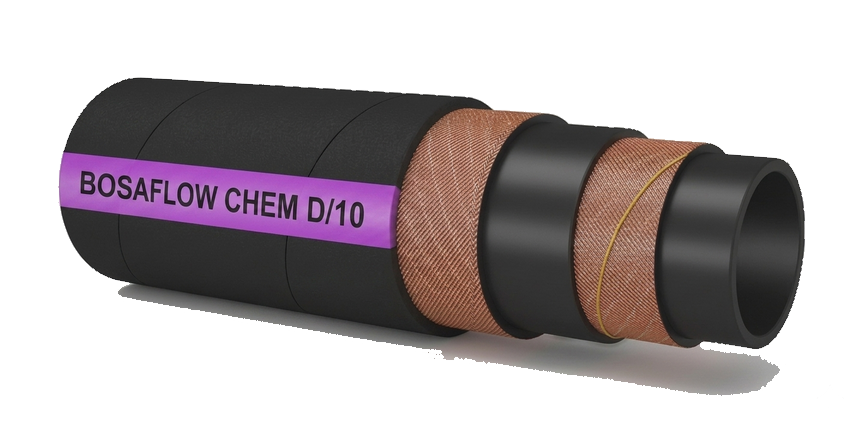

- Tube: Black, smooth, antistatic EPDM rubber compound.
- Reinforcement: High strength synthetic plies, conductive copper wire.
- Cover: Wrapped impression, abrasion, weather and heat resistant, antistatic, EPDM rubber compound.
- Temperature Range: -40°C to +100°C ; -40°F to 212°F
Technical Parameters
| ID (inch) | ID (mm) | OD (mm) | WP (BAR) | WP (PSI) | BP (BAR) | BP (PSI) | W (gr/mt) | L (mt) |
|---|---|---|---|---|---|---|---|---|
| 3/4" | 19 | 29 | 10 | 150 | 40 | 600 | 510 | 61 |
| 1" | 25.4 | 35 | 10 | 150 | 40 | 600 | 610 | 61 |
| 1 1/4" | 32 | 44 | 10 | 150 | 40 | 600 | 886 | 61 |
| 1 1/2" | 38 | 49 | 10 | 150 | 40 | 600 | 1012 | 61 |
| 2" | 50.8 | 64 | 10 | 150 | 40 | 600 | 1267 | 61 |
| 2 1/2" | 63.5 | 77 | 10 | 150 | 40 | 600 | 1984 | 61 |
| 3" | 76.2 | 90 | 10 | 150 | 40 | 600 | 2418 | 61 |
| 4" | 101.6 | 117 | 10 | 150 | 40 | 600 | 3183 | 61 |
