Description
Specifications

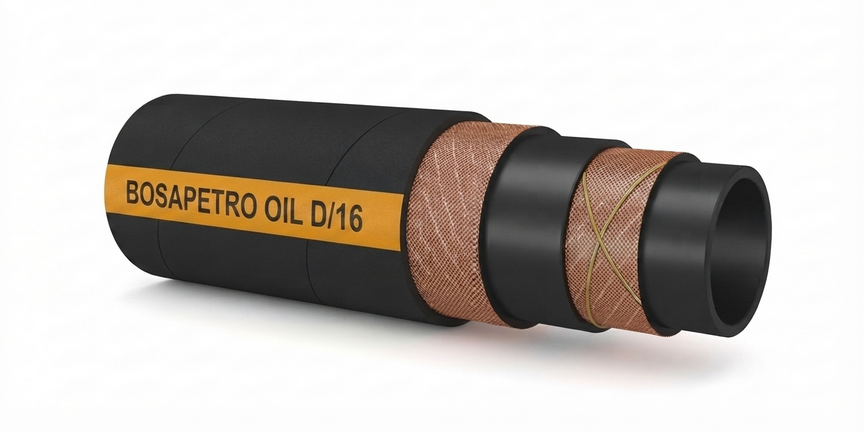

- Application: Delivery hose for fuels and petroleum derivatives with aromatic content up to 50%.
- Tube: Black, smooth, electrically conductive NBR compound.
- Reinforcement: High strength synthetic textile plies, 2 crossing conductive copper wires.
- Cover: Wrapped impression, electrically conductive, fireproof CR rubber compound, resistant to abrasion, weather, ozone, oil and heat.
- Temperature Range: -30°C to +70°C; -22°F to 158°F
Technical Parameters
| ID (inch) | ID (mm) | OD (mm) | WP (BAR) | WP (PSI) | BP (BAR) | BP (PSI) | BR (mm) | W (gr/mt) | L (mt) |
|---|---|---|---|---|---|---|---|---|---|
| 1/2" | 12.7 | 22 | 16 | 240 | 48 | 720 | 60 | 340 | 61 |
| 5/8" | 16 | 26 | 16 | 240 | 48 | 720 | 80 | 480 | 61 |
| 3/4" | 19 | 29 | 16 | 240 | 48 | 720 | 100 | 530 | 61 |
| 1" | 25.4 | 36 | 16 | 240 | 48 | 720 | 150 | 740 | 61 |
| 1 1/4" | 32 | 45 | 16 | 240 | 48 | 720 | 175 | 1100 | 61 |
| 1 3/8" | 35 | 48 | 16 | 240 | 48 | 720 | 195 | 1185 | 61 |
| 1 1/2" | 38 | 52 | 16 | 240 | 48 | 720 | 225 | 1235 | 61 |
| 1 9/16" | 40 | 53 | 16 | 240 | 48 | 720 | 230 | 1300 | 61 |
| 2" | 51 | 65 | 16 | 240 | 48 | 720 | 270 | 1700 | 61 |
