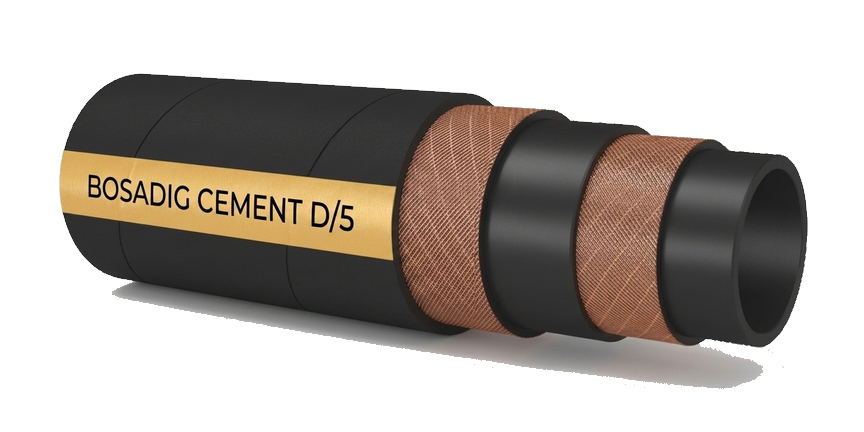

Description
Specifications
- Application: Transfer of cement, gravel, sand and general abrasive dry materials.
- Tube: Black, smooth, static-dissipating NR/SBR rubber compound.
- Reinforcement: High strength synthetic plies.
- Cover: Wrapped impression, abrasion and weather resistant NR/SBR rubber compound.
- Temperature Range: -40°C to +85°C ; -40°F to 185°F
Technical Parameters
| ID (inch) | ID (mm) | OD (mm) | WP (BAR) | WP (PSI) | BP (BAR) | BP (PSI) | W (gr/mt) | L (mt) | Note |
|---|---|---|---|---|---|---|---|---|---|
| 4″ | 101.6 | 113 | 5 | 75 | 15 | 225 | 2380 | 61 | 1/8″ Tube |
| 5″ | 127 | 139 | 5 | 75 | 15 | 225 | 2900 | 61 | 1/8″ Tube |
| 4″ | 101.6 | 118 | 5 | 75 | 15 | 225 | 3350 | 61 | 3/16″ Tube |
| 5″ | 127 | 144 | 5 | 75 | 15 | 225 | 4200 | 61 | 3/16″ Tube |
| 4″ | 101.6 | 121 | 5 | 75 | 15 | 225 | 3839 | 61 | 1/4″ Tube |
| 5″ | 127 | 147 | 5 | 75 | 15 | 225 | 4658 | 61 | 1/4″ Tube |
