Description
Specifications

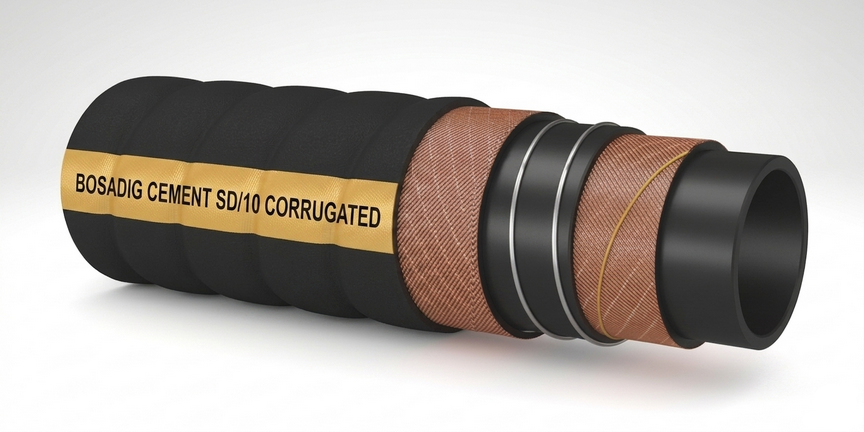

- Application: Transfer of cement, gravel, sand and general abrasive dry materials.
- Tube: Black, smooth, anti-static NR/SBR rubber compound.
- Reinforcement: High strength synthetic plies, steel wire helix, anti-static copper wire.
- Cover: Corrugated, wrapped impression, abrasion and weather resistant, anti-static, pin-pricked NR/SBR rubber compound.
- Temperature Range: -40°C to +85°C ; -40°F to 185°F
Technical Parameters
| ID (inch) | ID (mm) | OD (mm) | WP (BAR) | WP (PSI) | BP (BAR) | BP (PSI) | VAC (BAR) | BR (mm) | W (gr/mt) | L (mt) |
|---|---|---|---|---|---|---|---|---|---|---|
| 2" | 50.8 | 67 | 10 | 150 | 30 | 450 | 0.9 | 190 | 2010 | 61 |
| 2 1/2" | 63.5 | 78 | 10 | 150 | 30 | 450 | 0.9 | 240 | 2425 | 61 |
| 3" | 76.2 | 92 | 10 | 150 | 30 | 450 | 0.9 | 290 | 3241 | 61 |
| 3 1/2" | 90 | 107 | 10 | 150 | 30 | 450 | 0.9 | 360 | 3905 | 61 |
| 4" | 101.6 | 120 | 10 | 150 | 30 | 450 | 0.9 | 450 | 4690 | 61 |
| 5" | 127 | 150 | 10 | 150 | 30 | 450 | 0.9 | 550 | 6810 | 61 |
| 6" | 152.4 | 175 | 10 | 150 | 30 | 450 | 0.9 | 650 | 9150 | 61 |
| 8" | 203.2 | 229 | 10 | 150 | 30 | 450 | 0.9 | 1100 | 14180 | 20 |
| 10" | 254 | 281 | 10 | 150 | 30 | 450 | 0.9 | 1400 | 17830 | 20 |
