Description

Specifications

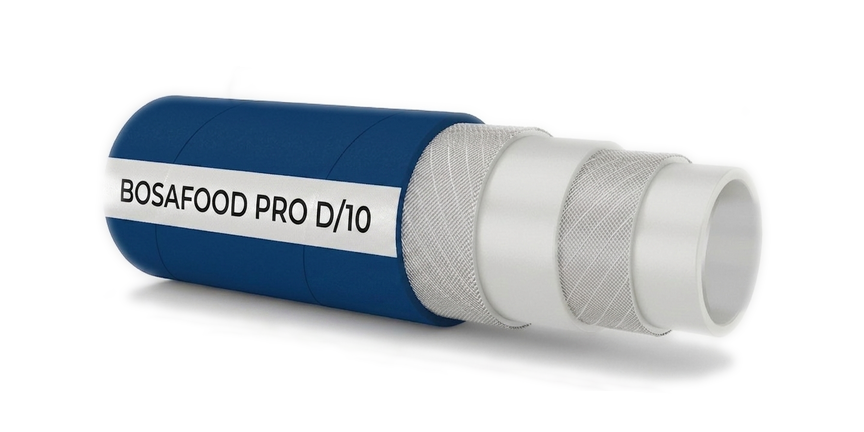

• Application: Transfer of fatty liquids including milk, juice, soft drinks, or water-based products such as pharmaceuticals and cosmetics requiring an FDA grade hose.
• Tube: White, smooth, FDA approved NBR rubber compound.
• Reinforcement: High strength synthetic plies.
• Cover: Blue, wrapped impression, abrasion, weather and ozone resistant, synthetic rubber compound.
• Temperature Range: -40°C to +80°C ; -40°F to 176°F. Sterilization with 110°C (230°F) steam for 10 minutes or with 5% soda solution.

Technical Parameters

ID (inch)	ID (mm)	OD (mm)	WP (BAR)	WP (PSI)	BP (BAR)	BP (PSI)	W (gr/mt)	L (mt)
3/4"	19	30	10	150	30	450	620	61
1"	25.4	37	10	150	30	450	818	61
1 1/4"	32	44	10	150	30	450	1074	61
1 1/2"	38	51	10	150	30	450	1362	61
1 3/4"	44.5	57	10	150	30	450	1561	61
2"	50.8	65	10	150	30	450	1936	61
2 1/2"	63.5	77	10	150	30	450	2324	61
3"	76.2	92	10	150	30	450	3129	61
