Description
Specifications

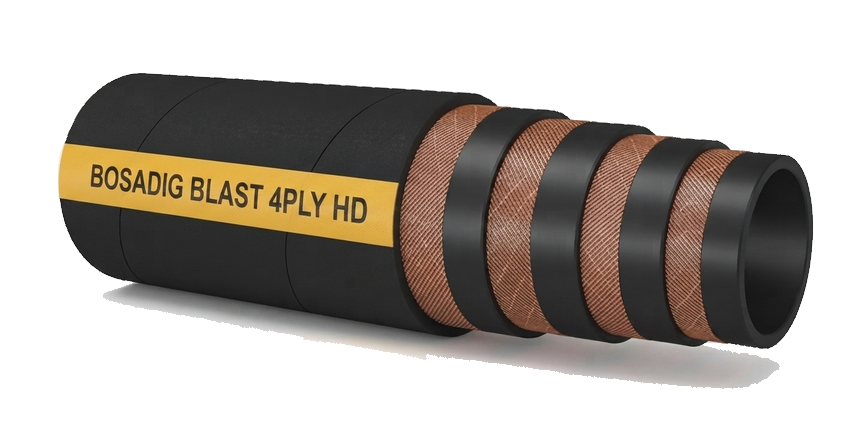

- Application: Used in conveying sand, shot, glass beads and other abrasive materials at high velocity for cleaning metal, concrete surfaces at shipyards and general construction.
- Tube: Black, smooth, static-dissipating NR/SBR rubber compound. 5/16″ tube thickness increases life cycle of the product.
- Reinforcement: High strength 4 synthetic plies.
- Cover: Wrapped impression, abrasion and weather resistant, static-dissipating, pin-pricked, NR/SBR rubber compound.
- Temperature Range: -40°C to +85°C ; -40°F to 185°F
Technical Parameters
| ID (inch) | ID (mm) | OD (mm) | OD (inch) | WP (BAR) | WP (PSI) | BP (BAR) | BP (PSI) | W (gr/mt) | L (mt) |
|---|---|---|---|---|---|---|---|---|---|
| 1" | 25.4 | 47.6 | 1.88 | 10 | 150 | 30 | 450 | 1510 | 61 |
| 1 1/4" | 32 | 54.7 | 2.16 | 10 | 150 | 30 | 450 | 1892 | 61 |
| 1 1/2" | 38 | 60.3 | 2.38 | 10 | 150 | 30 | 450 | 2020 | 61 |
