Description

Specifications

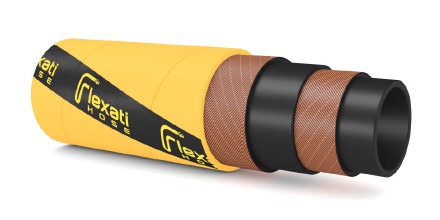

• Tube: Black smooth, synthetic rubber compound resistant to oil mist.
• Reinforcement: High-strength 2-ply synthetic cords.
• Cover: Wrapped impression, abrasion and weather-resistant, pin-pricked synthetic rubber compound.
• Temperature Range: -35°C to +93°C.
• Application: Heavy-duty air and water.

Technical Parameters

ID (inch)	ID (mm)	OD (mm)	WP (BAR)	WP (PSI)	BP (BAR)	BP (PSI)	BR (mm)	W (gr/mt)	L (mt)
1/2"	12.7	23	27.6	400	82.8	1200	127	418	61
5/8"	16	27	27.6	400	82.8	1200	160	512	61
3/4"	19	31	27.6	400	82.8	1200	190	621	61
1"	25.4	38	27.6	400	82.8	1200	254	798	61
1 1/4"	32	47	27.6	400	82.8	1200	320	1229	61
1 1/2"	38	52	27.6	400	82.8	1200	380	1410	61
1 3/4"	44.5	61	27.6	400	82.8	1200	445	1739	61
2"	51	67	27.6	400	82.8	1200	510	2217	61
2 1/2"	63.5	82	27.6	400	82.8	1200	635	2910	61
3"	76.2	94	27.6	400	82.8	1200	762	3411	61
4"	101.6	120	27.6	400	82.8	1200	1016	4355	61
